What happened to the +39 (Italy) ENUM DNS Zone ?

Posted on Wed 25 February 2015 in VoIP

ENUM is a DNS based algorithm used to store data associated with E.164 numbers (aka global phone numbers). Using ENUM you can associate your email or Skype or SIP contact along with your phone number.

So, registering your contacts in the ENUM tree you'll make yourself reachable trough all the ways you published on the ENUM database: someone needing to contact you will do an ENUM query against your E.164 phone number, the server will answer with all your contacts (email, SIP URI, Web URL, Instant message, presence service, etc..).

ENUM implements a global, multiservice addressbook.

How ENUM works?

  1. As first you need to translate the phone number in the E.164 format (for example +39 338 1234567 for the Italian mobile number 338 1234567)
  2. The E.164 number should reduced to numbers only (393381234567)
  3. All digits should reordered front-back (765432183393)
  4. Insert a dot between each digit (7.6.5.4.3.2.1.8.3.3.9.3)
  5. Add the suffix ".e164.arpa" at the end (7.6.5.4.3.2.1.8.3.3.9.3.e164.arpa)
  6. Send a DNS request for the obtained domain and look at the NAPTR record

ENUM is globally managed trough a DNS hierarchy: RFC6116 states:

   Names within this zone are to be delegated to parties consistent with
   ITU Recommendation E.164.  The names allocated should be hierarchic
   in accordance with ITU Recommendation E.164, and the codes should be
   assigned in accordance with that Recommendation.

This means that for example the +49 E.164 country code (Germany) is managed by the German naming authority:

~ pietro$ dig +short NS 9.4.e164.arpa
enum3.denic.de.
enum1.denic.de.
enum2.denic.de.

A working example is the number +43 780 00471:

~ pietro$ dig +short 1.1.7.4.0.0.0.8.7.3.4.e164.arpa NAPTR
100 10 "u" "E2U+web:http" "!\^.\*\$!http://q.nemox.net/!" .
100 10 "u" "E2U+email:mailto" "!\^.\*\$!mailto:info@nemox.net!" .
100 10 "u" "E2U+sip" "!\^.\*\$!sip:enum-test@sip.nemox.net!" .

The 9.3.e164.arpa zone

The DNS manging the +39 country code seems not working:

~ pietro$ dig +short 9.3.e164.arpa ANY
;; connection timed out; no servers could be reached

Searching the nameserver managing this zone:

~ pietro$ dig +short e164.arpa NS
sec1.apnic.net.
tinnie.arin.net.
pri.authdns.ripe.net.
sec3.apnic.net.
ns3.nic.fr.
sns-pb.isc.org.

~ pietro$ dig @ns3.nic.fr 9.3.e164.arpa NS

; <<>> DiG 9.8.3-P1 <<>> @ns3.nic.fr 9.3.e164.arpa NS
; (1 server found)
;; global options: +cmd
;; Got answer:
;; ->>HEADER<;; flags: qr rd; QUERY: 1, ANSWER: 0, AUTHORITY: 2,
ADDITIONAL: 0
;; WARNING: recursion requested but not available

;; QUESTION SECTION:
;9.3.e164.arpa. IN NS

;; AUTHORITY SECTION:
9.3.e164.arpa. 172800 IN NS dns2.istsupcti.it.
9.3.e164.arpa. 172800 IN NS dns.istsupcti.it.

The 9.3.e164.arpa is delegated to dns2.istsupcti.it and dns.istsupcti.it, no one of them seems working:

~ pietro$ dig @dns2.istsupcti.it ANY

; <<>> DiG 9.8.3-P1 <<>> @dns2.istsupcti.it ANY
; (1 server found)
;; global options: +cmd
;; connection timed out; no servers could be reached
~ pietro$ dig @dns.istsupcti.it ANY

; <<>> DiG 9.8.3-P1 <<>> @dns.istsupcti.it ANY
; (1 server found)
;; global options: +cmd
;; connection timed out; no servers could be reached
Ok, ENUM is totally broken in Italy.

Let me dig a bit more:

Who is istsupcti.it (seems not have even a working web site)?

~ pietro$ whois istsupcti.it

\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*
\* Please note that the following result could be a subgroup of \*
\* the data contained in the database. \*
\* \*
\* Additional information can be visualized at: \*
\* http://www.nic.it/cgi-bin/Whois/whois.cgi \*

\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*

Domain: istsupcti.it
Status: ok
Created: 1998-12-23 00:00:00
Last Update: 2015-02-24 00:54:36
Expire Date: 2016-02-08

Registrant
Organization: Istituto Superiore delle Comunicazioni e delle Tecnologie
dell'Informazione
Address: Viale America, 201
Roma
00144
RM
IT
Created: 2008-02-08 12:11:24
Last Update: 2012-07-16 16:14:51

Admin Contact
Name: Claudia Passaro
Organization: Istituto Superiore delle Comunicazioni e delle Tecnologie
dell'Informazione
Address: Viale America, 201
Roma
00144
RM
IT
Created: 2012-07-16 14:30:02
Last Update: 2012-07-16 16:13:49

Technical Contacts
Name: Gestione Domini
Address: Via Caracciolo, 51
MILANO
20155
MI
IT
Created: 2005-07-07 00:00:00
Last Update: 2014-06-20 14:07:55

Registrar
Organization: Fastweb s.p.a.
Name: FASTWEB-REG

Nameservers
dns1.fweds-spc.it
dns2.fweds-spc.it

Googling for "Istituto Superiore delle Comunicazioni e delle Tecnologie dell'Informazione" I found the website.

10 years of testing

Searching on the RIPE archive I found the delegation request for the +39 ENUM prefix: it was in October 2005: Almost ten years ago! The request comes from the Voipex consortium (from the website it looks more or less died now).

Digging on the Internet you can find some old posts saying that we entered in a test phase for the ENUM introduction.

Searching on the AGCOM (The Italian Communications Authority) website you can see some documents mentioning ENUM as a maybe/future technology to adopt.

The result at the moment is that after 10 years of testing, a consortium foundation, various ISP involved, ENUM isn't working at all and we cannot find test results, adoptions guidelines nor regulation rules.

Just for the taxpayers happiness!

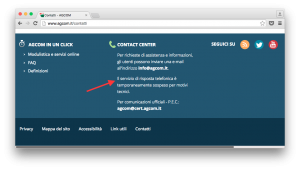

I just sent an email to urp.comunicazioni@mise.gov.it ("Istituto Superiore delle Comunicazioni e delle Tecnologie dell'Informazione" PR office ), I tried to send an email to AGCOM too but I crashed against this message:

agcom]

If you have any information about ENUM in Italy, feel free to contact me.

to be continued ...
